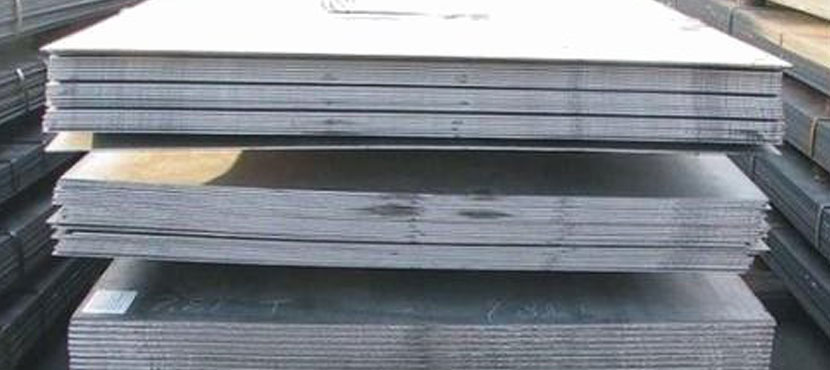

Steel Plate For Boiler & Pressure Vessel
Steel Plate For Boiler & Pressure Vessel
Pressure vessel steel plate covers a range of steel grades that are designed for use in pressure vessel, boilers, heat exchangers and any other vessel that contains a gas or liquid at high pressures. Familiar examples include gas cylinders for cooking and for welding, oxygen cylinders for diving and many of the large metallic tanks that you see in an oil refinery or chemical plant. There is a huge range of different chemicals and liquid that that stored and processed under pressure. These range from relatively benign substances such as milk and palm oil to crude oil and natural gas and their distillates to highly lethal acids and chemicals such as methyl isocyanate. So of these processes need the gas or liquid to be very hot, whilst others contain it at very low temperatures. As a result there is a wide variety of different pressure vessel steel grades that meet the different use cases.
This steel is extensively used for vessels designed to store energy sources such as crude oil, natural gas and LNG. These vessels must provide the environment required for the energy source contained including high pressure and extremely low or high temperature. Therefore, the steel used for this purpose requires excellent workability, weldability, heat resistance and corrosion resistance. POSCO’s boiler & pressure vessel quality steel is widely used for applications that handle various energy sources, including gas ball tank, LPG tanks, crude oil or other liquified material tanks, storage tanks and thermal power boilers.
Steel grades
JIS : SB410/450/480, SGV410, SPV235/315/450/490, SB450M/480M
ASTM : A285 GrA/B/C, A515 Gr55/60/65/70, A537 CLASS1/2, A387 Gr11/12/22, A542 GrD
Pressure Vessel Grades Available Ex-Stock
These pressure vessel steel grades are usually kept in stock. The thickness are for indication only but we will usually have thicker plates available in most grades
| Standard | Grade | Minimum Thickness (mm) | Maximum Thickness (mm) |
|---|---|---|---|
| ASTM/ASME | A516 70 | 6 | 150 |
| ASTM/ASME | A516 65 | ||
| ASTM/ASME | A516 60 | 6 | 120 |
| ASTM/ASME | A387 11 CL2 | 6 | 60 |
| ASTM/ASME | A387 12 CL2 | 8 | 40 |
| ASTM/ASME | A387 5 CL2 | ||
| EN10028 - 2 | P265 GH | 6 | 150 |
| EN10028 - 2 | P265 GH | 6 | 150 |
| EN10028 - 2 | P355 GH | 6 | 150 |
| EN10028 - 2 | 16Mo3 | 6 | 150 |
| EN10028 - 3 | P275 NL1 | 5 | 100 |
| EN10028 - 3 | P275 NH | 5 | 100 |
| EN10028 - 3 | P355 NH | 6 | 150 |
| EN10028 - 3 | P355 NL1 | 6 | 150 |
| EN10028 - 3 | P355 NL2 | 6 | 150 |
| EN10028 - 3 | P460 NH | 8 | 30 |
| EN10028 - 3 | P460 NL2 | 8 | 30 |
| ASTM/ASME | A516 60 + HIC | 6 | 100 |
| ASTM/ASME | A516 65 + HIC | 6 | 100 |
| ASTM/ASME | A516 70 + HIC | 6 | 100 |
| Dillinger | Dicrest 5 | 6 | 100 |
