Seamless Titanium Pipes
Seamless Titanium Pipes

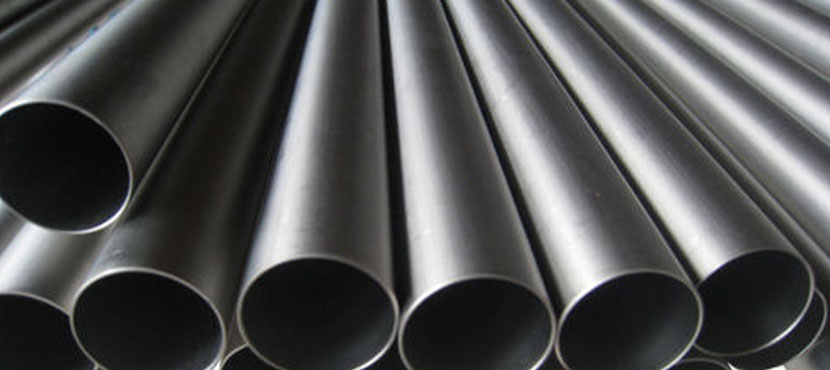

Titanium Seamless Pipes do not have any welded joints or parts. These are directly extruded or drawn from a billet and are used in industries like Hydrocarbon Industries & Refineries, Oil & Gas Exploration & Drilling, and Hydraulic Cylinders, Bearings, Boilers, Automobiles, etc.
Specifications
Product :Titanium and Titanium seamless pipe
Size :Cold-rolled:
OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"), 12000mm (472.4") max (OD. over 15mm, 0.59") Extruded: OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7")
Material :Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc.
Standard :ASTM B 338, ASTM B 337, ASTM B 861
Shape :Round
Specific dimension for cold-rilled pipes
OD(mm) |
8.0-10.0 |
10.0-15.0 |
15.0-20.0 |
20.0-25.0 |
25.0-30.0 |
30.0-35.0 |
WT(mm) |
0.15-2.0 |
0.2-2.0 |
0.4-2.7 |
0.45-3.2 |
0.45-3.3 |
0.45-3.4 |
OD(mm) |
35.0-40.0 |
41.0-45.0 |
46.0-50.0 |
51.0-55.0 |
56.0-60.0 |
61.0-65.0 |
WT(mm) |
0.5-3.5 |
0.6-3.8 |
0.6-3.8 |
0.6-4.4 |
0.8-4.6 |
0.9-4.7 |
OD(mm) |
66.0-70.0> |
71.0-75.0> |
76.0-95.0 |
96.0-114.0 |
|
|
WT(mm) |
1.0-4.9 |
1.2-6.0> |
1.2-7.1 |
1.3-7.5 |
|
|
OD |
0.32"-0.39" |
0.39"-0.59" |
0.59"-0.79" |
0.79"-0.98" |
0.98"-1.18" |
1.18"-1.38" |
WT |
0.006"-0.079" |
0.079"-0.79" |
0.016"-0.11" |
0.018"-0.126" |
0.018"-0.13" |
0.018"-0.134" |
OD |
1.38"-1.57" |
1.61"-1.77" |
1.81"-1.97" |
2.00"-2.17" |
2.20"-2.36" |
2.40"-2.56" |
WT |
0.02"-0.138" |
0.024"-0.15" |
0.024"-0.15" |
0.024"-0.17" |
0.031"-0.18" |
0.035"-0.19" |
OD |
2.60"-2.76" |
2.80"-2.95" |
2.99"-3.74" |
3.78"-4.49" |
|
|
WT |
0.04"-0.19" |
0.047"-0.24" |
0.047"-0.28" |
0.051"-0.30" |
|
|
Chemical Components
Grade |
Fe% |
C% |
N% |
H% |
O% |
Al% |
V% |
Mo% |
Ni% |
Pd% |
Ti |
Gr1 |
0.2 |
0.08 |
0.03 |
0.015 |
0.18 |
-- |
-- |
-- |
-- |
-- |
BAL. |
Gr2 |
0.3 |
0.08 |
0.03 |
0.015 |
0.25 |
-- |
-- |
-- |
-- |
-- |
BAL. |
Gr3 |
0.3 |
0.08 |
0.05 |
0.015 |
0.35 |
-- |
-- |
-- |
-- |
-- |
BAL. |
Gr4 |
0.3 |
0.08 |
0.05 |
0.015 |
0.40 |
-- |
-- |
-- |
-- |
-- |
BAL |
Gr5 |
0.25 |
0.08 |
0.03 |
0.015 |
0.02 |
5.5 - 6.75 |
3.5 - 4.5 |
-- |
-- |
-- |
BAL |
Gr7 |
0.3 |
0.08 |
0.03 |
0.015 |
0.25 |
-- |
-- |
-- |
-- |
0.12 - 0.25 |
BAL. |
Gr9 |
0.25 |
0.08 |
0.03 |
0.015 |
0.15 |
2.5 - 3.3 |
2.0 - 3.0 |
-- |
-- |
-- |
BAL. |
Gr12 |
0.3 |
0.08 |
0.03 |
0.015 |
0.25 |
-- |
-- |
0.2 - 0.4 |
0.6 - 0.9 |
-- |
BAL. |
Gr23 |
0.3 |
0.08 |
0.03 |
0.015 |
0.13 |
5.5 - 6.75 |
-- |
-- |
-- |
-- |
BAL |
Mechanical Components
Grade |
Tensile Strength (min) |
Yield Strength 0.2% Offset |
Elongation in 2 inch or 50mm % (min) |
||
KSI |
MPa |
KSI |
MPa |
||
Gr.1 |
35 |
240 |
20 - 45 |
138 - 310 |
24 |
Gr.2 |
50 |
345 |
40 - 65 |
275 - 450 |
20 |
Gr.3 |
65 |
450 |
55 - 80 |
380 - 550 |
18 |
Gr.4 |
80 |
550 |
≥70 |
≥483 |
15 |
Gr.5 |
138 |
950 |
≥128 |
≥880 |
14 |
Gr.7 |
50 |
345 |
≥40 |
≥275 |
24 |
Gr.9 |
125 |
860 |
≥105 |
≥725 |
10 |
Gr.12 |
70 |
483 |
≥50 |
≥345 |
18 |
Gr.23 |
125 |
860 |
≥115 |
≥790 |
15 |
