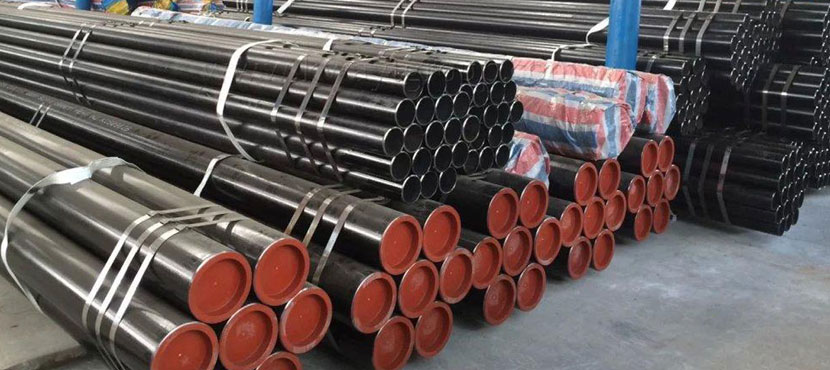

ASTM A210 Gr A1 Carbon Steel Pipe/ Tubes



ASTM A210 Gr A1 Carbon Steel Pipe/ Tubes

ASTM A210 Grade A1 Seamless Tube shall be made by the seamless or welding process with the addition of no filler metal in the welding operation. The offered ASTM A210 GR A1 CS Seamless Tubes is availed in diverse sizes and other related specifications, to meet requirements of our prominent clients.ASME SA 210 Gr.A1 Boiler Pipes that is designed according to set industry standards. As per the needs and requirements of our clients, we are involved in providing ASME SA 210 Gr. A1 Boiler Tubes. Buy ASTM A210 Grade A1 Boiler Tubes at reasonable cost from us.

Specification:

Grade : ASTM A210 Grade A1 Carbon Steel
Size : 1/2” NB to 36” NB
Standard : ASTM A210, ASME SA210
Outer Diameter Size: 1/4"NB To 2"NB
Wall Thickness: 1 mm to 8 mm
Form: Round, Square, Rectangular, Hydraulic Etc
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Length: Single Random, Double Random & Cut Length.
Type: Seamless Tube
End: Plain End, Beveled End, Treaded

Koryo steel , is a leading name involved in manufacturing & exporting premium quality of ASTM A210 Gr A1 Carbon Steel Pipe/ Tubes. We supply ASTM A210 Pipes in different sizes, specifications & thickness as per clinets requirement. ASME SA 210 A1 is primarly used for heat exchanger tubes in critical thermal power plant & waste heat recovery boilers operated in the temperature range of 300◦C to 400◦C. It is exposed in the furnace to high temperature.

Chemical Composition

Chemical Composition
C	Mn	Si	P	S
≤0.27	≤0.93	≥0.1	≤0.035	≤0.035

Mechanical Composition

Mechanical Properties
Tensile Strength(Mpa)	Yield Strength (Mpa)	Elongation(%)
≥ 415	≥ 255	≥ 30
