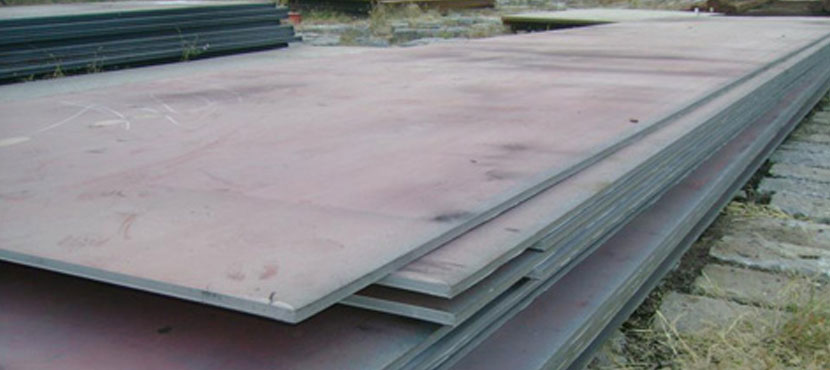

Steel Plate For Linepipe



Steel Plate For Linepipe

Also commonly called linepipe steel, pipe and tubular steel is typically used for mass transport of key energy sources such as crude oil and natural gas. Therefore, it must provide the durability required to carry such key energy sources over a long range from the point of production to the point of consumption. Recently, many other features are expected of the steel as its applications expand resulting from less and less availability of close-to-reach energy sources. Examples include impact toughness required for use at extremely low temperatures and resistance to hydrogen induced cracking and/or stress corrosion cracking required for use in a harsh environment where H2S pressure is high.

Specialist for extreme conditions

Extremely low arctic temperatures, extreme pressures in the deep ocean, acid media: Even the most difficult conditions have no negative effect on our linepipe plates. Our plates are found in depths of up to 3,000 meters below the sea surface, either in the form of sour-gas-resistant linepipe plates or as land lines up to 48 inches (1,220 mm) in diameter. We also offer roll-bonded clad linepipe plates with a corrosion-resistant cladding for the highest demands in sour-gas application. As a specialist in modern thermomechanical rolling technology with accelerated cooling, we are among the world's industry leaders. More than two million tons of sour-gas-resistant linepipe plates and high-toughness linepipe plates for thick-walled deep-sea lines testify to the success of our high-quality products.

Steel grades

API : API 5L-B, X42, X46, X52, X56, X60, X65, X70, X80, X100, X120

according to API 5L	BM, X52M, X56M, X60M, X65M, X70M, X80M, X100M, X120M
according to EN 10208-2	L245MB, L360MB, L415MB, L450MB, L485MB, L555MB
according to DNV OS-F101	SAWL245, SAWL360, SAWL390, SAWL415, SAWL450, SAWL485, SAWL555
according to ISO 3183:	L245M, L360M, L390M, L415M, L450M, L485M, L555M

Dimensions

Plate thickness	9.5–63 mm
Plate width	1,400–3,800 mm (48" pipe diameter max.), dependent on thickness and steel grade; narrower widths upon request
Plate length	18,700 mm max.; dependent on thickness and steel grade
Unit weight	20.0 tons max. per single plate

Our linepipe plates are thermomechanically rolled and accelerated-cooled. All grades available upon request as sour-gas-resistant at pH3 or pH5 according to NACE TM 0284 Solution A and B. All grades can be delivered with notched-bar impact and Battelle test (BDWTT) at temperatures below 0 °C. HIC tests for sour-gas applications upon request.
