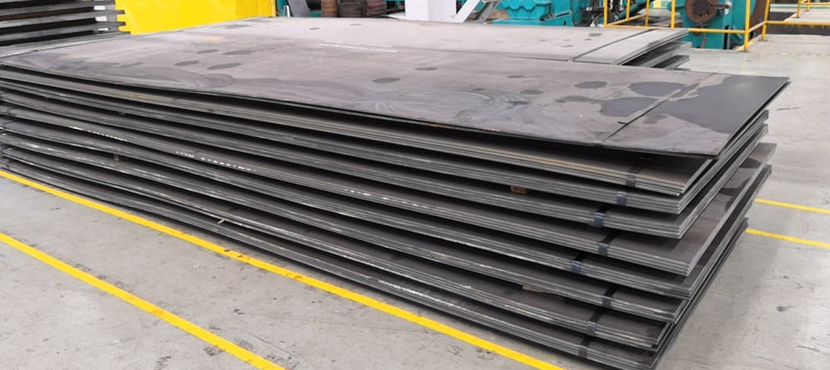

A36 Steel Plate
ASTM A36 Steel Plate is one of the most common grades of steel used in structural applications. This mild carbon steel grade contains chemical alloys that give it properties such as machinability, ductility, and strength that are ideal for use in constructing a variety of structures.
Available Sizes
Due to its wide variety of uses, Koryo Steel keeps a ready stock of the following standard sizes in our distribution centers, but other sizes may be available for special orders.
| THICKNESS | WIDTH | LENGTH | |
|---|---|---|---|
| A36 | 3/16" – 18" | 48" – 120" | UP TO 480" |
MATERIAL PROPERTIES
The following material properties are ASTM specifications and will be confirmed on the Mill Test Report.
| YIELD POINT (KSI) | TENSILE STRENGTH (KSI) | MIN. 8" ELONGATION % | |
|---|---|---|---|
| A36 | 36 | 58-80 | 20 |
CHEMICAL COMPOSITION
The following composition properties are ASTM specifications for the A36 grade.
| UP TO 3/4" THICK | |
|---|---|
| CARBON MAX | 0.25% |
| PHOSPHORUS MAX | 0.030% |
| SULFUR MAX | 0.030% |
| SILICON | 0.40% MAX |
| COPPER MIN | 0.20% |
